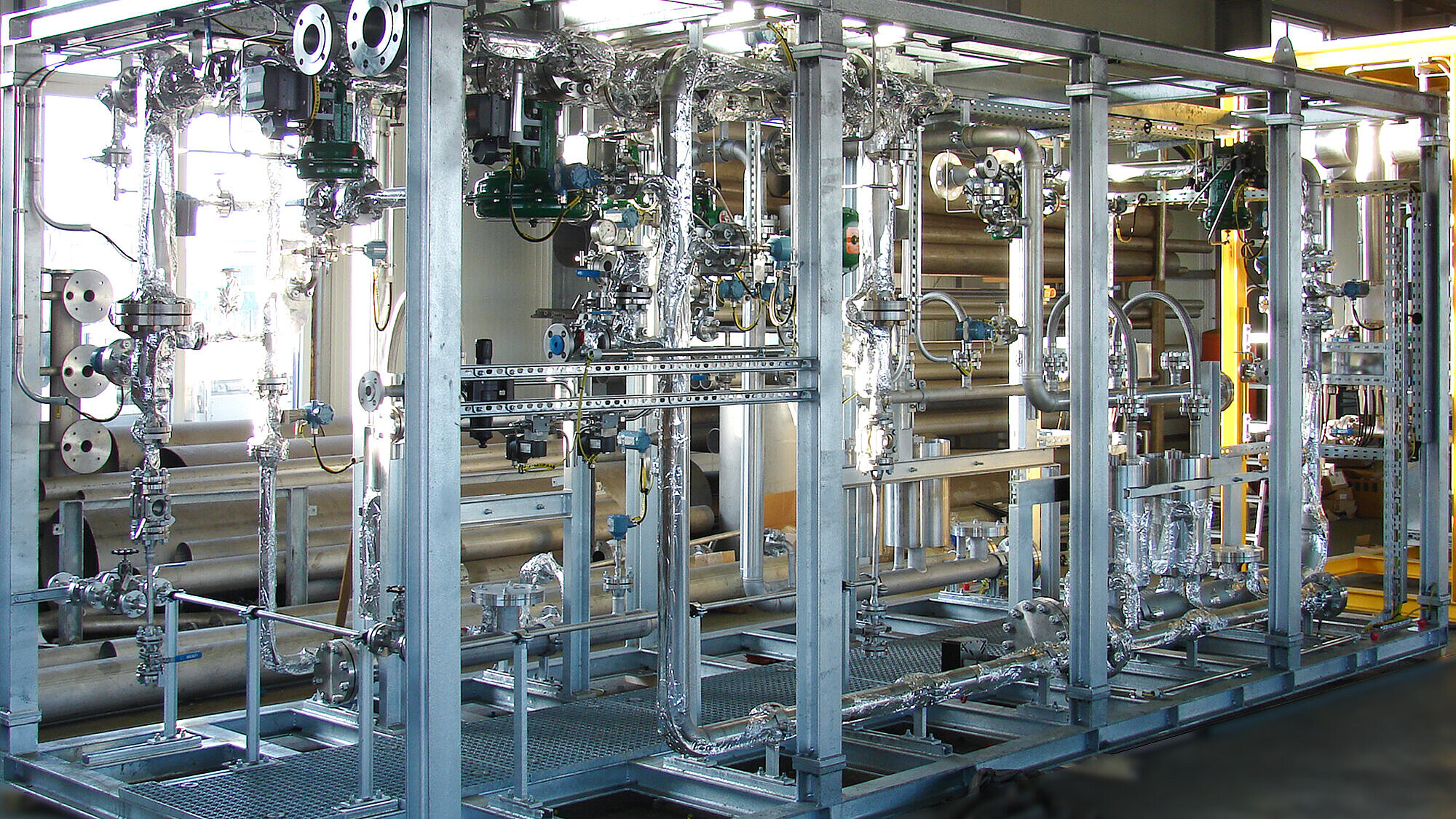

BORSIG Ethylene Recovery Unit for PE Production

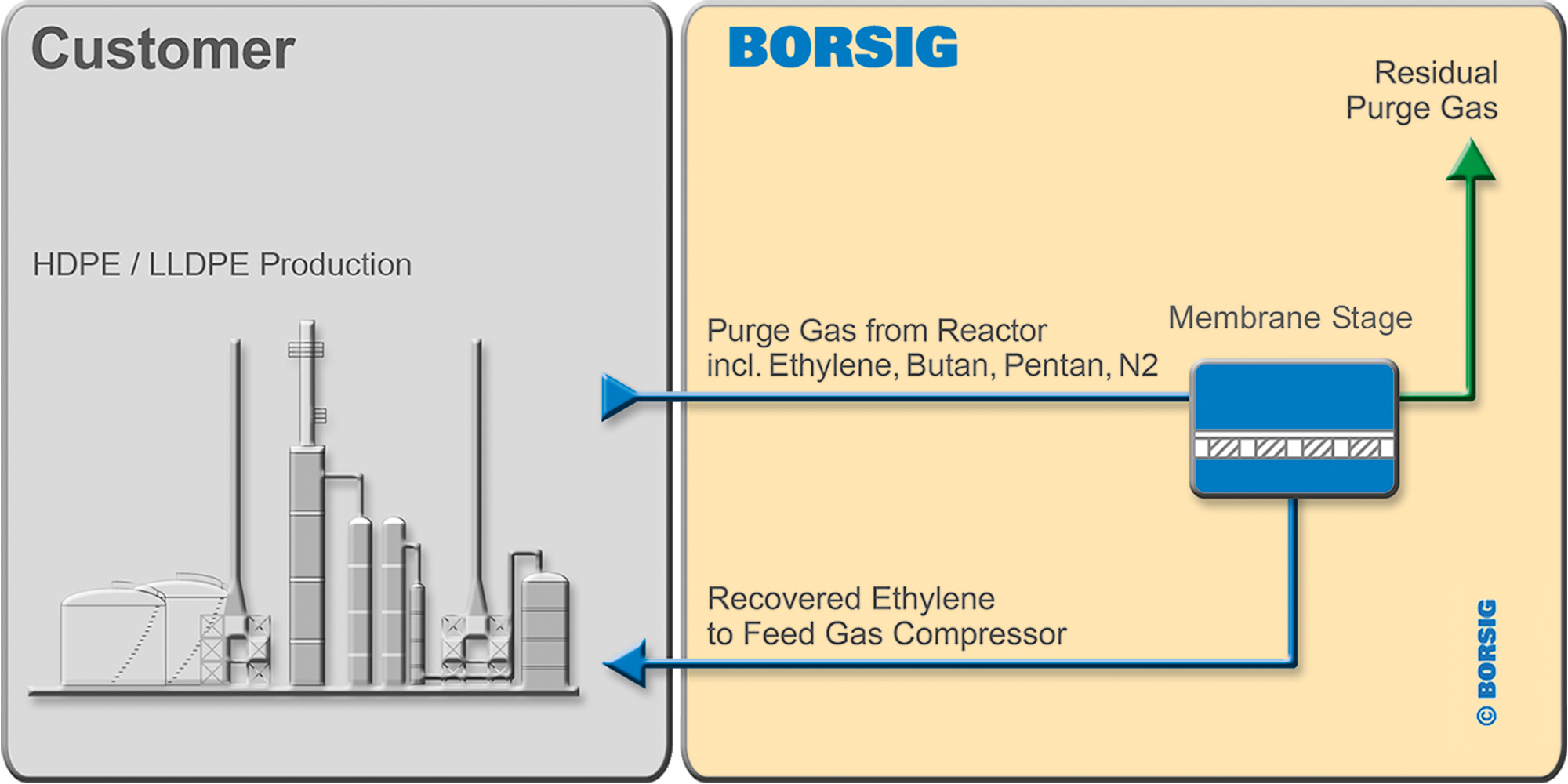

The BORSIG Ethylene Recovery Unit is an easy add-on system and can be considered for new and existing process installations. The purge gas stream containing the ethylene monomer and inert gas, is typically pressurised and fed into the membrane system, while the permeate side of the membrane separation stage is fed back into the existing process gas compressor’s suction side. By means of the resulting pressure difference and the hydrocarbon selective membrane material, the purge gas stream is separated into off-gas, enriched with inert gas, and the recycled ethylene-rich permeate stream. No other equipment or machinery is usually required making this a very simple and reliable process solution.
- Easy installation in new plants and easy retrofit of existing systems
- Easiest solution in comparison to other technologies – only a membrane separator is required
- Very short return on investment
- Low maintenance
- Safe and reliable operation
- Tailor-made design to meet customer’s codes and specifications
BORSIG Membrane Technology GmbH
Membrane processes are standard processes used either as a substitution or in combination with other process steps in many areas of the chemical, petrochemical, oil and gas industries. BORSIG Membrane Technology GmbH offers modern, intelligent solutions for new and existing processes. Taking the highest safety and quality standards into consideration, our membranes, membrane modules and membrane systems ensure operational safety, maximum efficiency and optimum cost effectiveness.
