BORSIG Membrane Technology GmbH
Product Recovery
Flexible and safe

BORSIG Seal Gas Recovery Unit

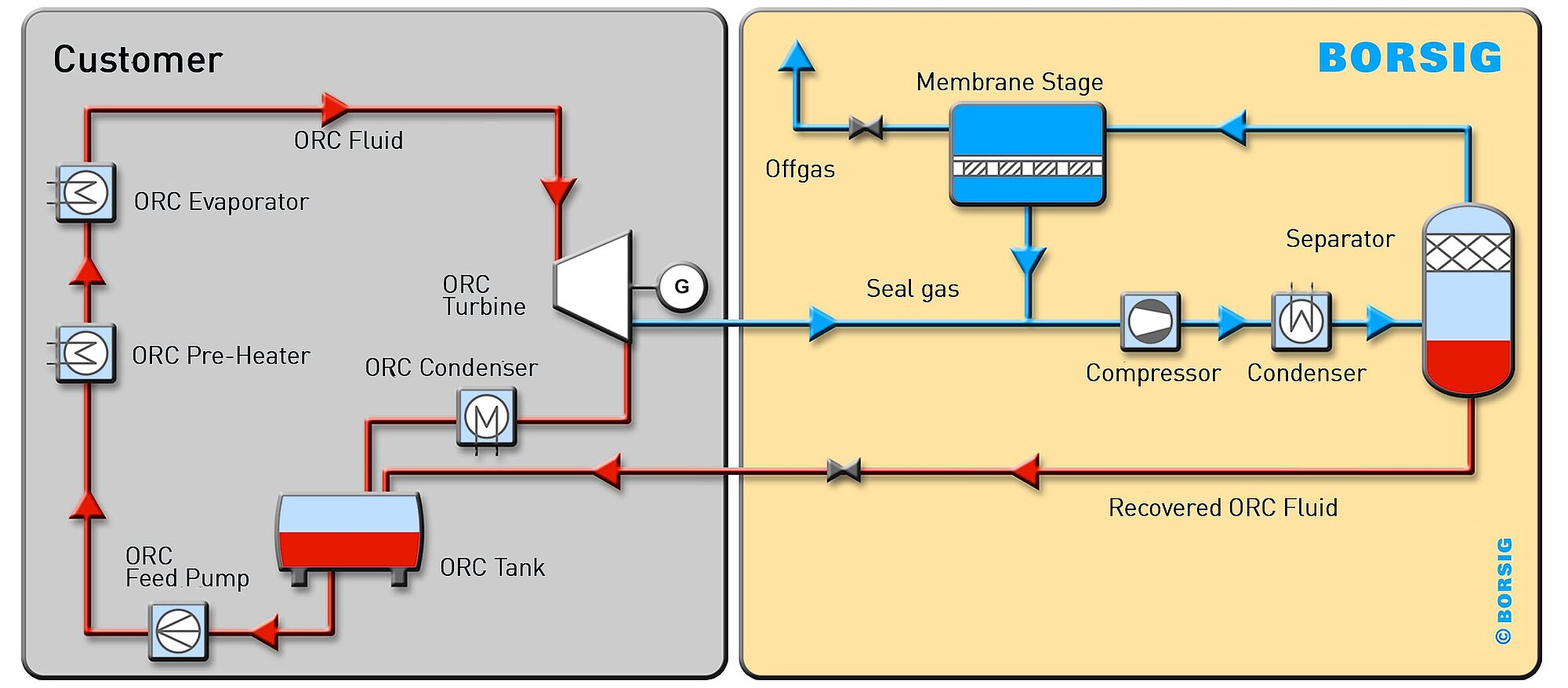

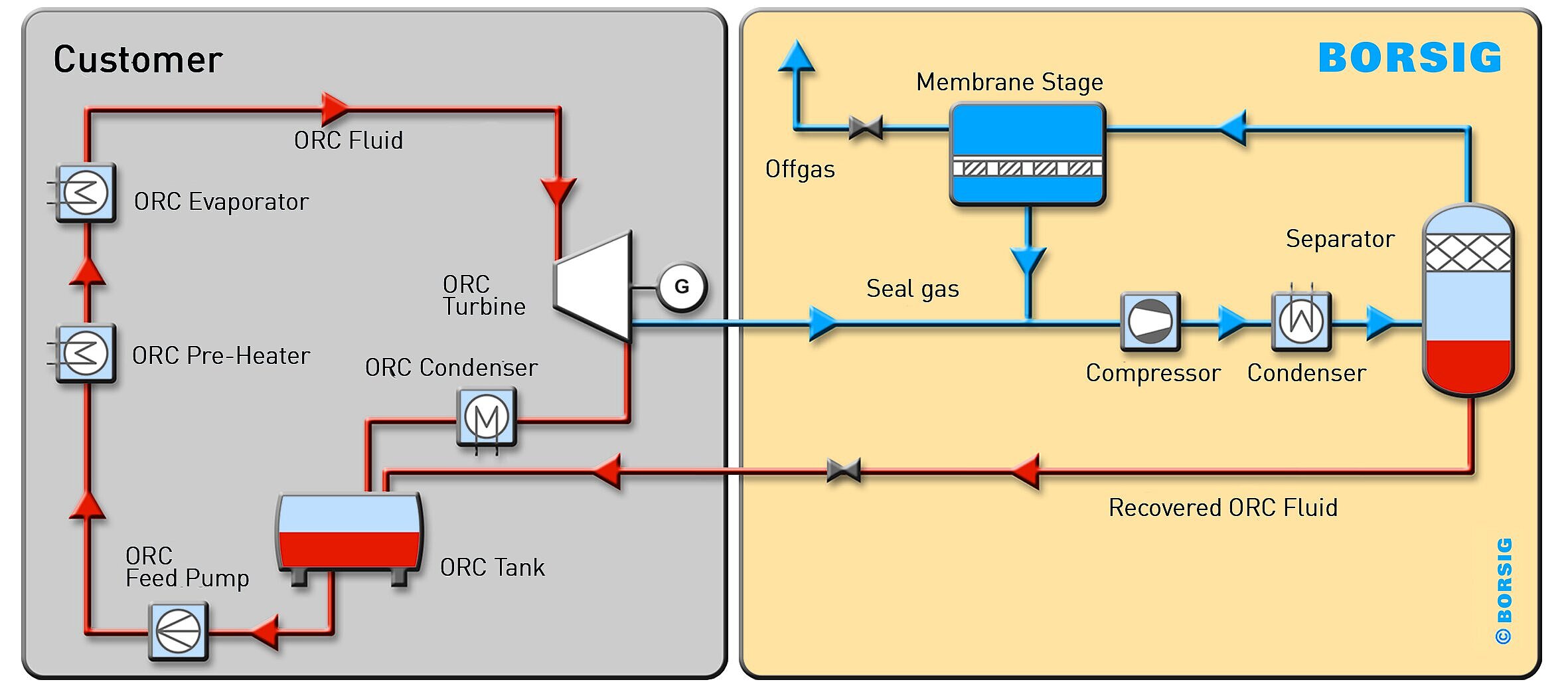

The BORSIG Seal Gas Recovery Unit enables the valuable hydrocarbon to be recovered from the mechanical seal system. The process usually consists of the following unit operations: compression, condensation and membrane separation. The liquefied hydrocarbon is routed back to a tank for re-use in the ORC system and the nitrogen enriched exhaust gas is either routed to the flare system or can be purified in order to meet the nitrogen requirements for re-use in the process.

The benefits

  • Flexible system for multiple component handling
  • Highest recovery rates and product purities
  • Safe operation, high reliability, low maintenance
  • Modular design to meet specific plant conditions and local regulations
  • Quick installation and easy implementation by package unit design
  • Adaption to existing plants (retrofit design) feasible


BORSIG Membrane Technology GmbH

Membrane processes are standard processes used either as a substitution or in combination with other process steps in many areas of the chemical, petrochemical, oil and gas industries. BORSIG Membrane Technology GmbH offers modern, intelligent solutions for new and existing processes. Taking the highest safety and quality standards into consideration, our membranes, membrane modules and membrane systems ensure operational safety, maximum efficiency and optimum cost effectiveness.
